CEH – Swissonic #987, Prototype, 1968
Categories: functional prototype

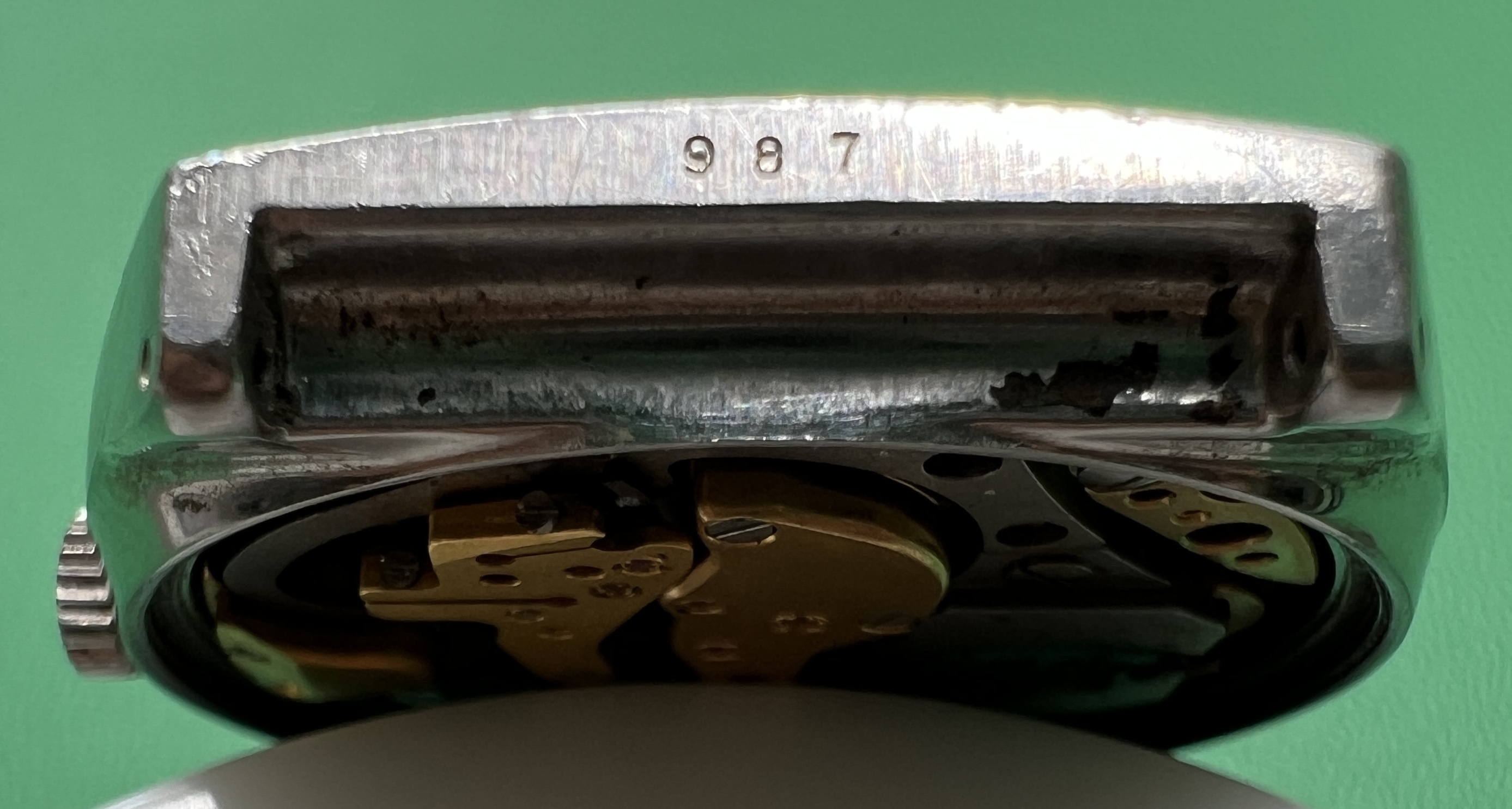

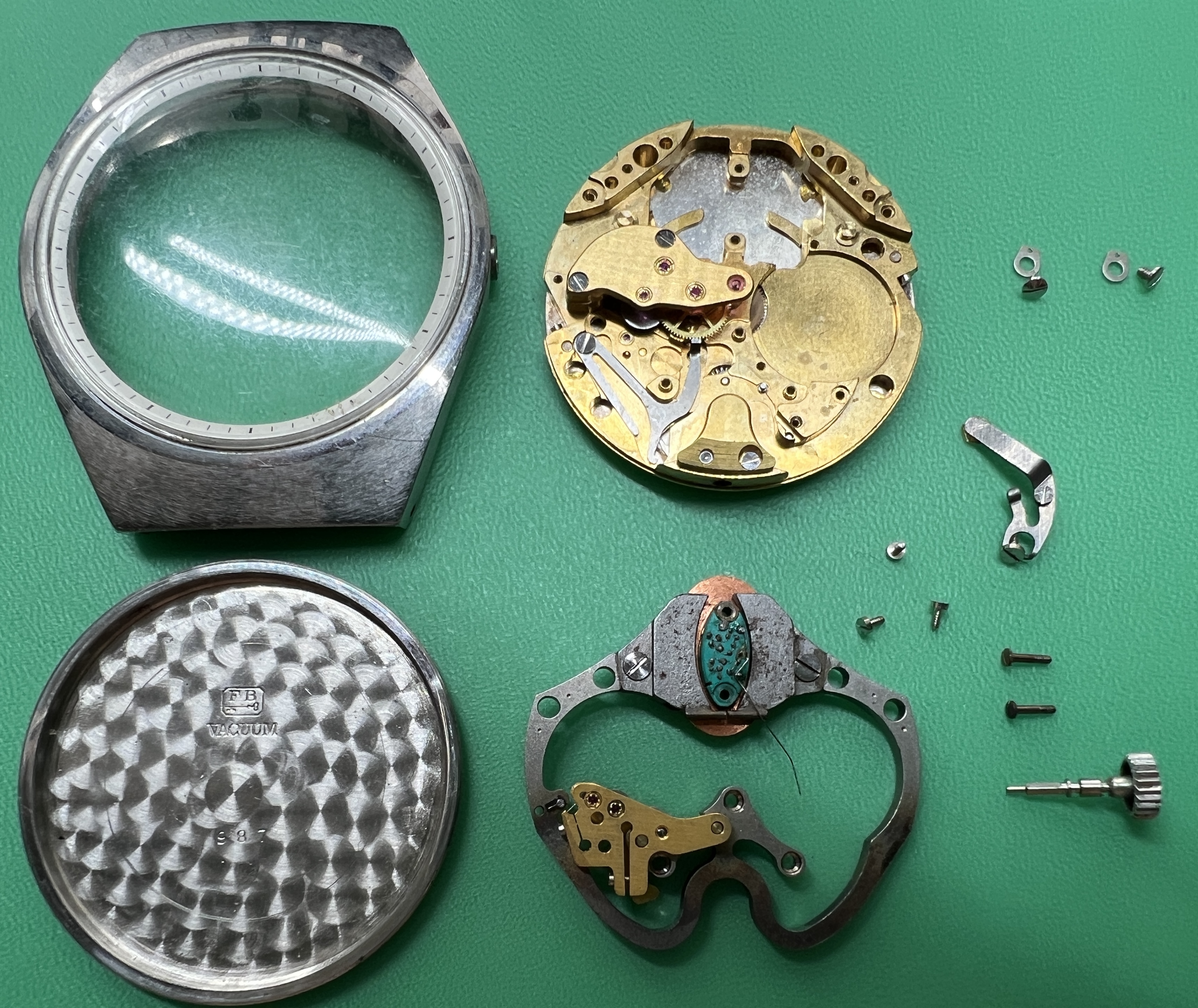

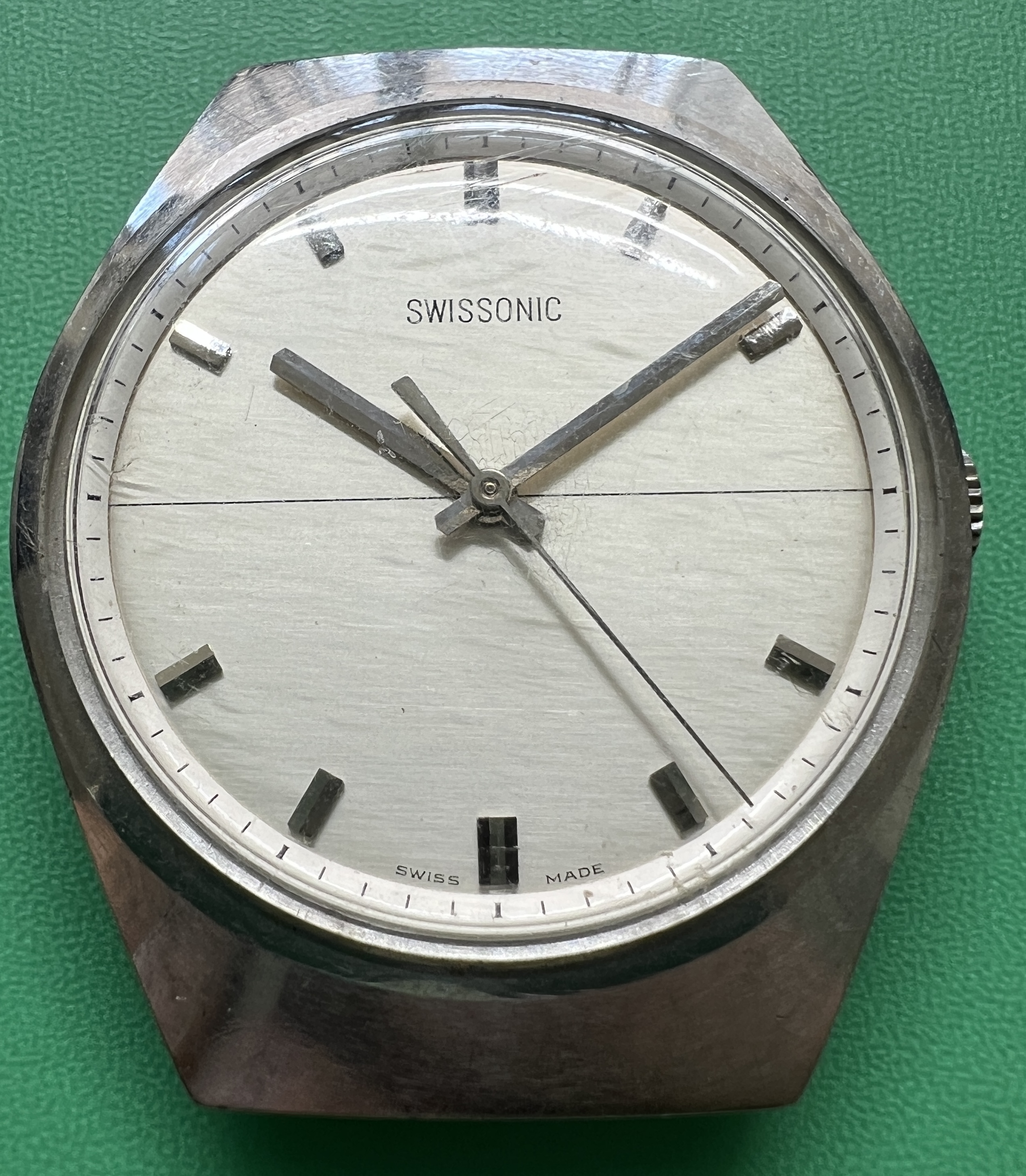

Description: Stainless steel cased prototype. Stainless steel case back, inside stamped with prototype number ‘987’ and ‘FB’ standing for ‘François Borgel’, see below. The prototype number ‘987’ is also embossed on one of the surfaces facing the lugs. White brass dial with broad raised 5 minute markers, white peripherial minute track with black printed minute marks. White printed ‘Swissonic’ at ’12’ and ‘Swiss Made’ at 6′. No date. Silvered, thin hour, minute and seconds hand. Acrylic crystal. Anonymous stainless steel crown.
Dimensions: 36.2mm (without crown), lug – lug: 41.3mm, lug width: 18mm
Movement: Prototype cal.: 153

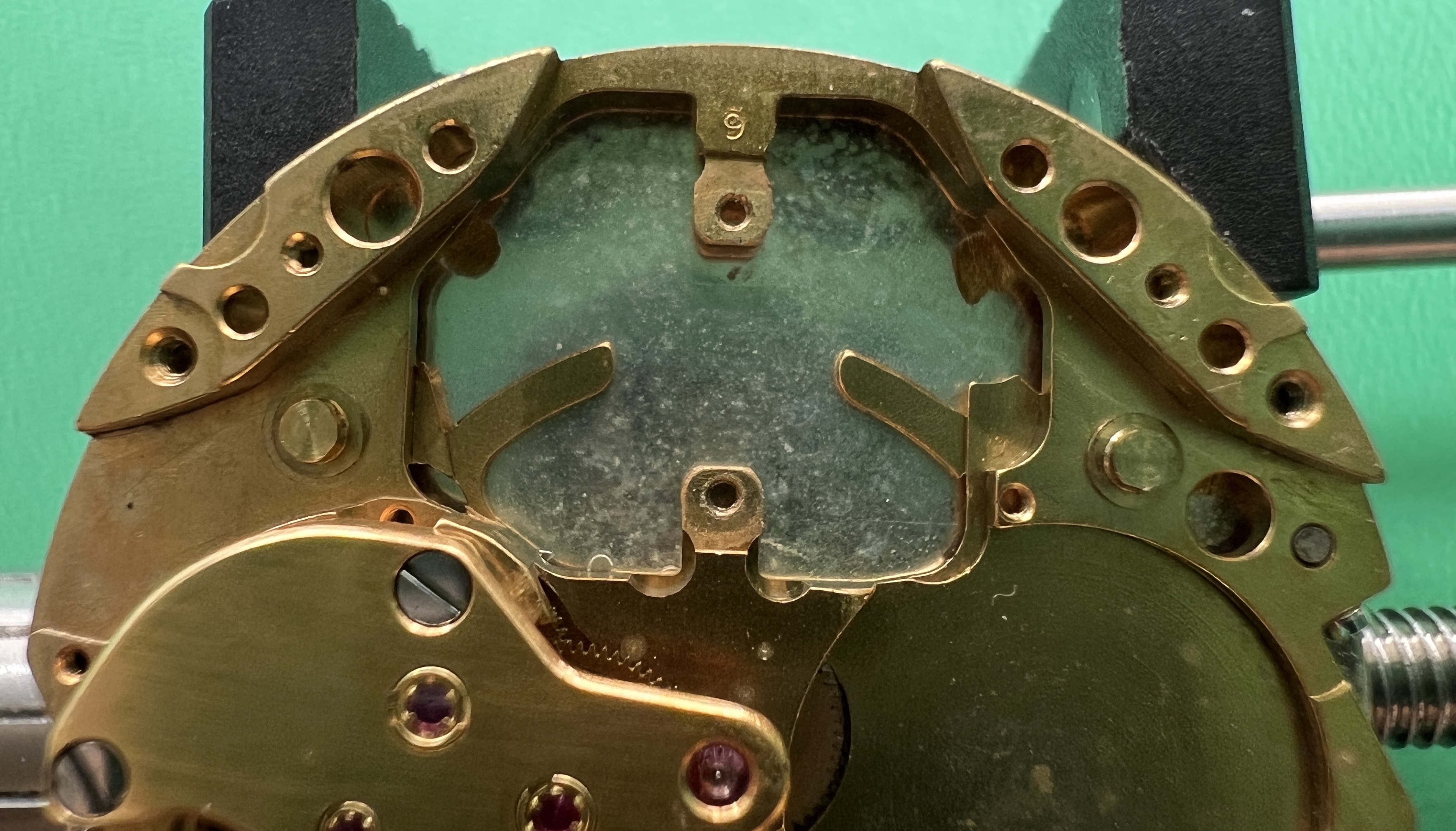

Additional info: The adjustment devices on the arms of the tuning forks are little excentric screws, later prototypes have small metallic hooks for adjusting the frequency.

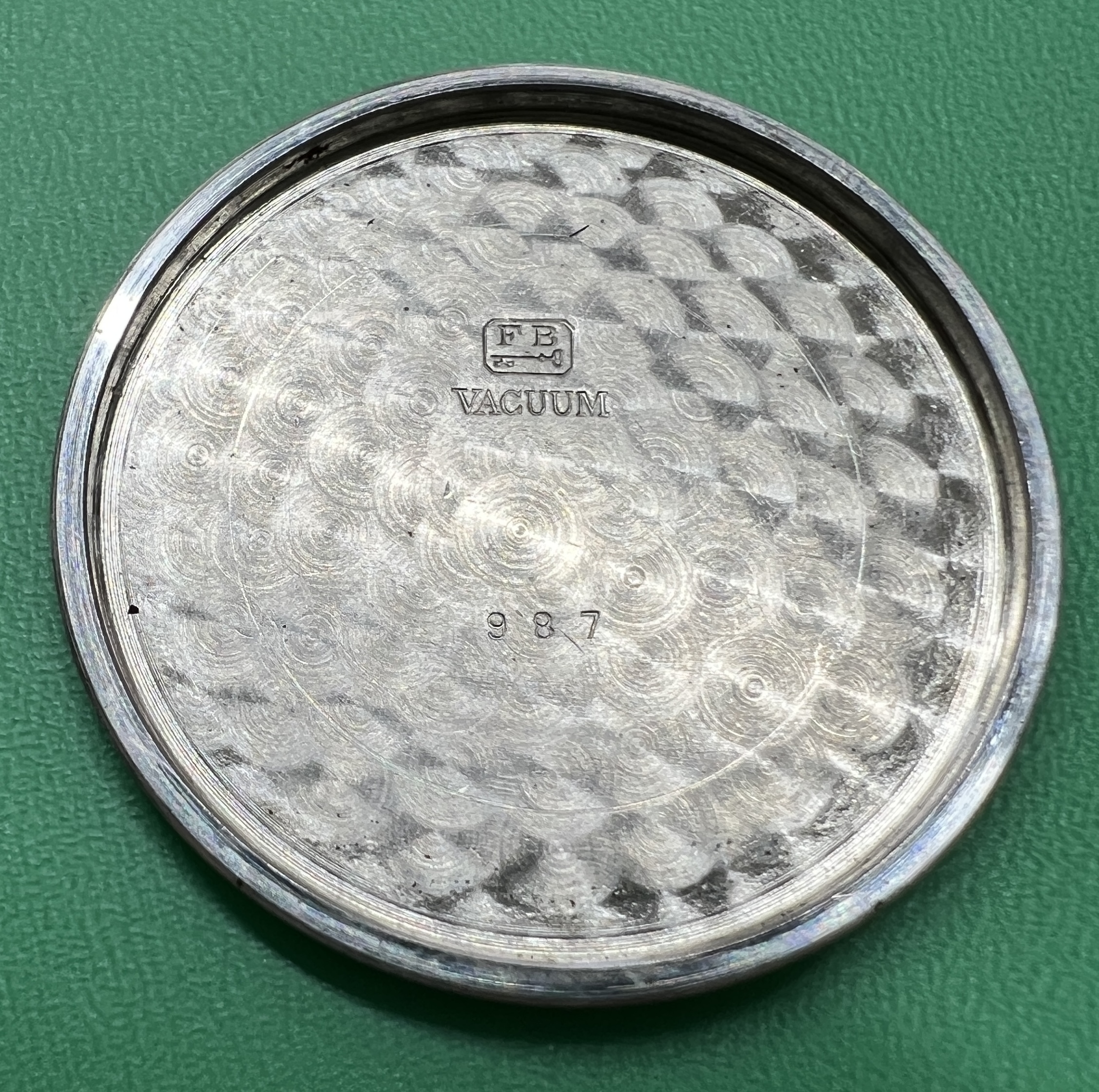

Case was made by ‘Taubert Fils’, who still used the mark ‘FB’ for François Borgel, who invented this type of watch case. The main case is unmarked, the ‘FB’ mark is stamped on the inside of the screw down case back.
Picture credit: P. Pasierbeck
